Project planning guide
Before you build
Use the reference image and planning notes as a starting point. Confirm dimensions, loads, materials, local codes, and site conditions before purchasing or cutting.
- Best Woodworking Lamps
- 10 reference images
- Print-friendly guide
Folding lamps use covers, screens, tripods, boxes, ribs, slats, ruler arms, panels, trusses, and flat-pack frames to change size or light direction. These designs prioritize readable hinges and positive open stops.
Browse the complete Best Woodworking Lamps collection to compare all 2,610 original concepts across two hundred sixty-one guides.
10 folding wooden lamp ideas

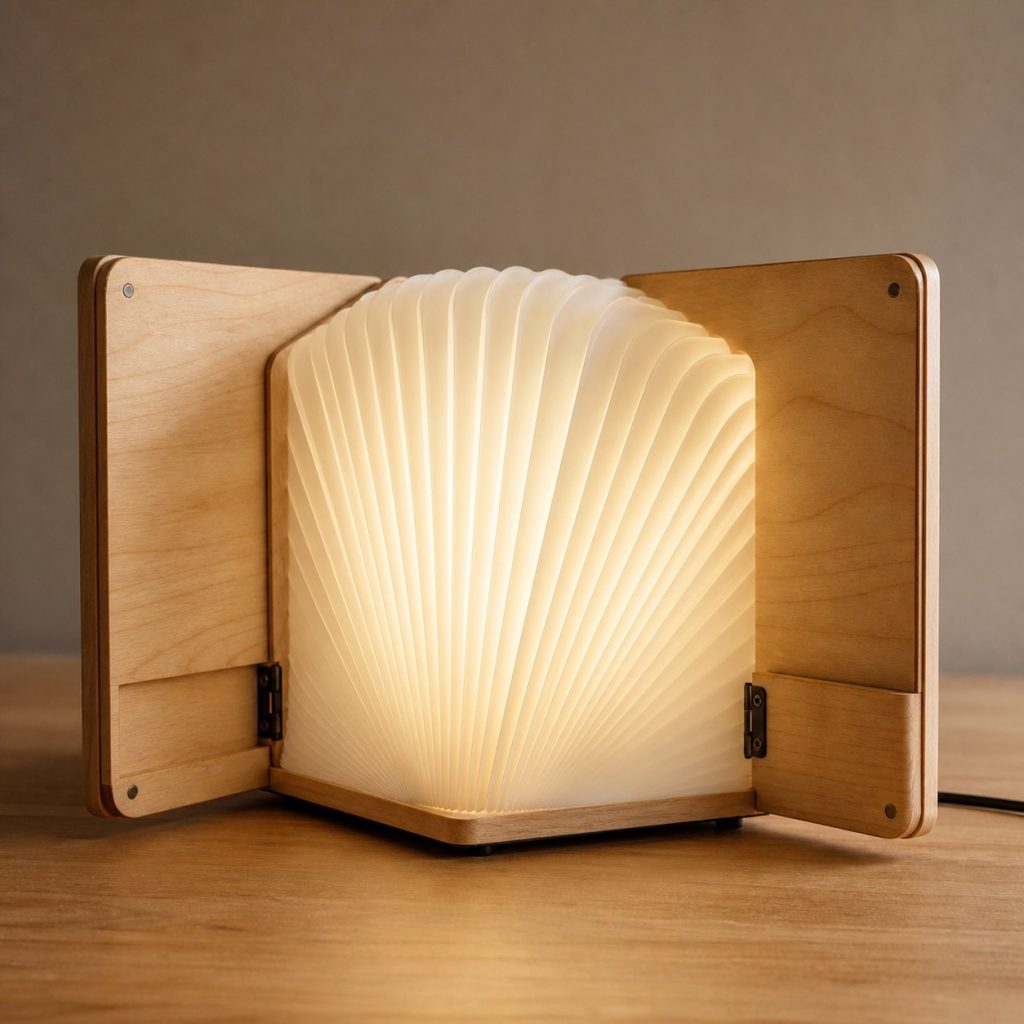

Maple Book-Fold Lamp
The full view makes the distinctive mechanism, footprint, light direction, and continuous load path readable at a believable scale.
Design check: Mock up the full footprint or ceiling position and confirm that the real shade and hardware remain clear of nearby surfaces.

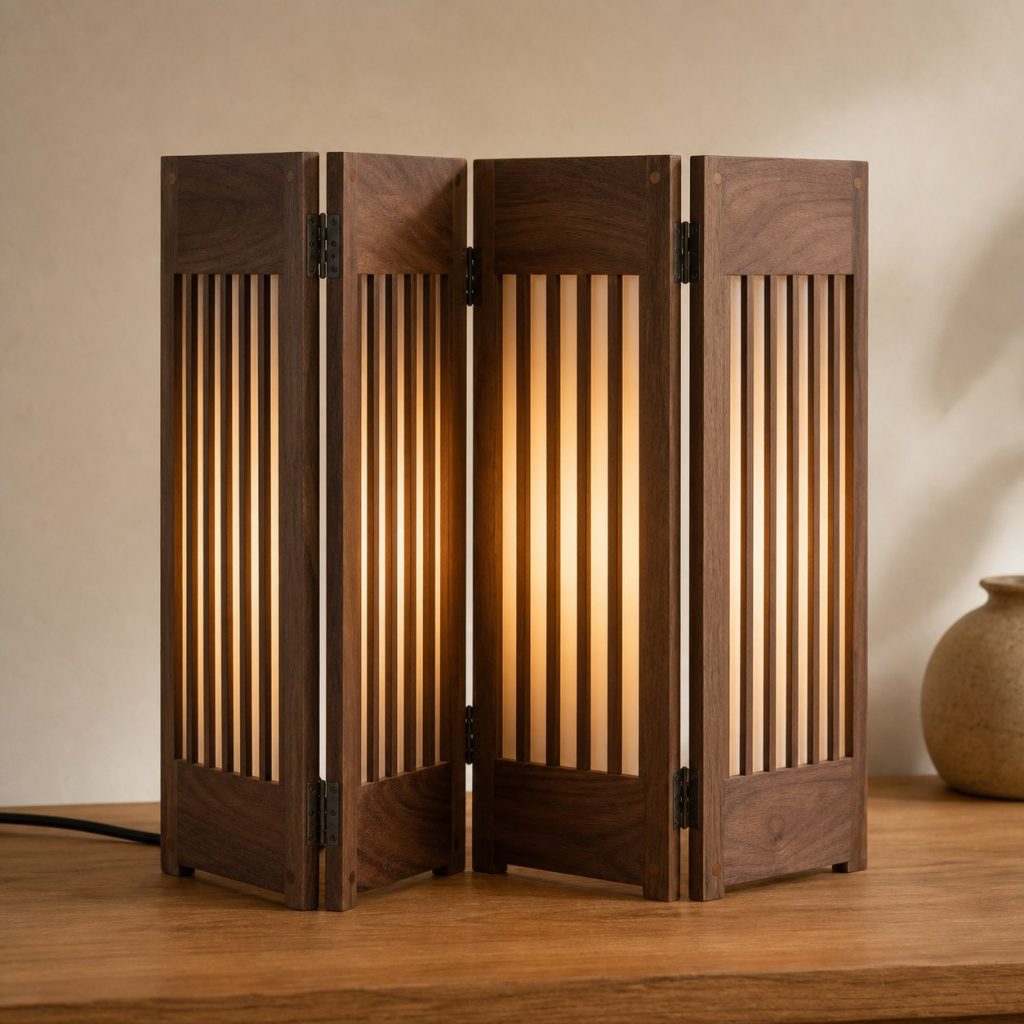

Walnut Folding-Screen Lamp
Pivots, hinges, screws, dowels, rails, cleats, or stops are positioned where a real adjustable assembly would need them.
Design check: Identify every rated component and keep its label, wattage, installation instructions, and service access available.

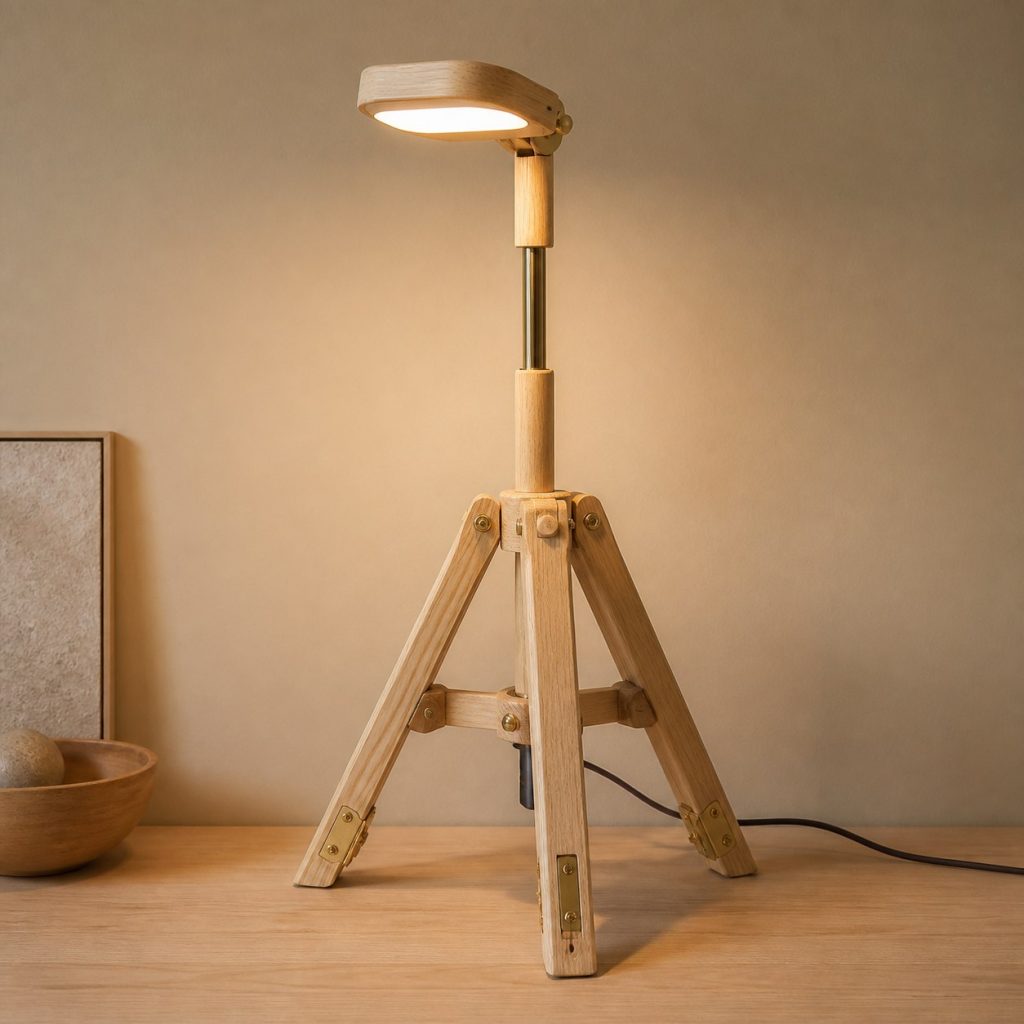

Ash Collapsible Tripod Lamp
A broad base, secure backplate, positive clamp, or weighted book support keeps the design stable in its least favorable position.
Design check: Add a metal socket cup, lamp pipe, mounting plate, or aluminum LED channel wherever the light assembly meets wood.

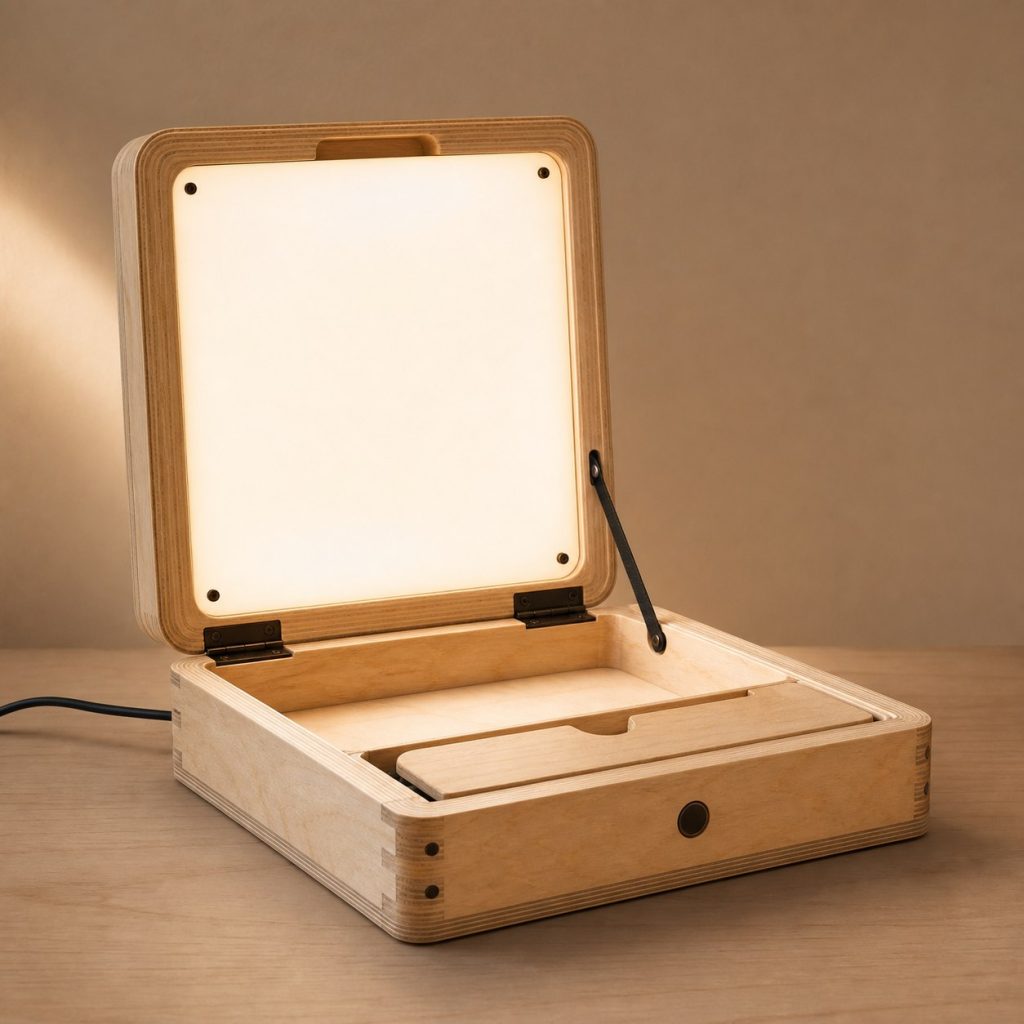

Plywood Suitcase Lamp
The diffuser and LED module remain removable without dismantling the main wooden structure or pulling on conductors.
Design check: Make the shade or diffuser removable without pulling on conductors or weakening the wooden frame.

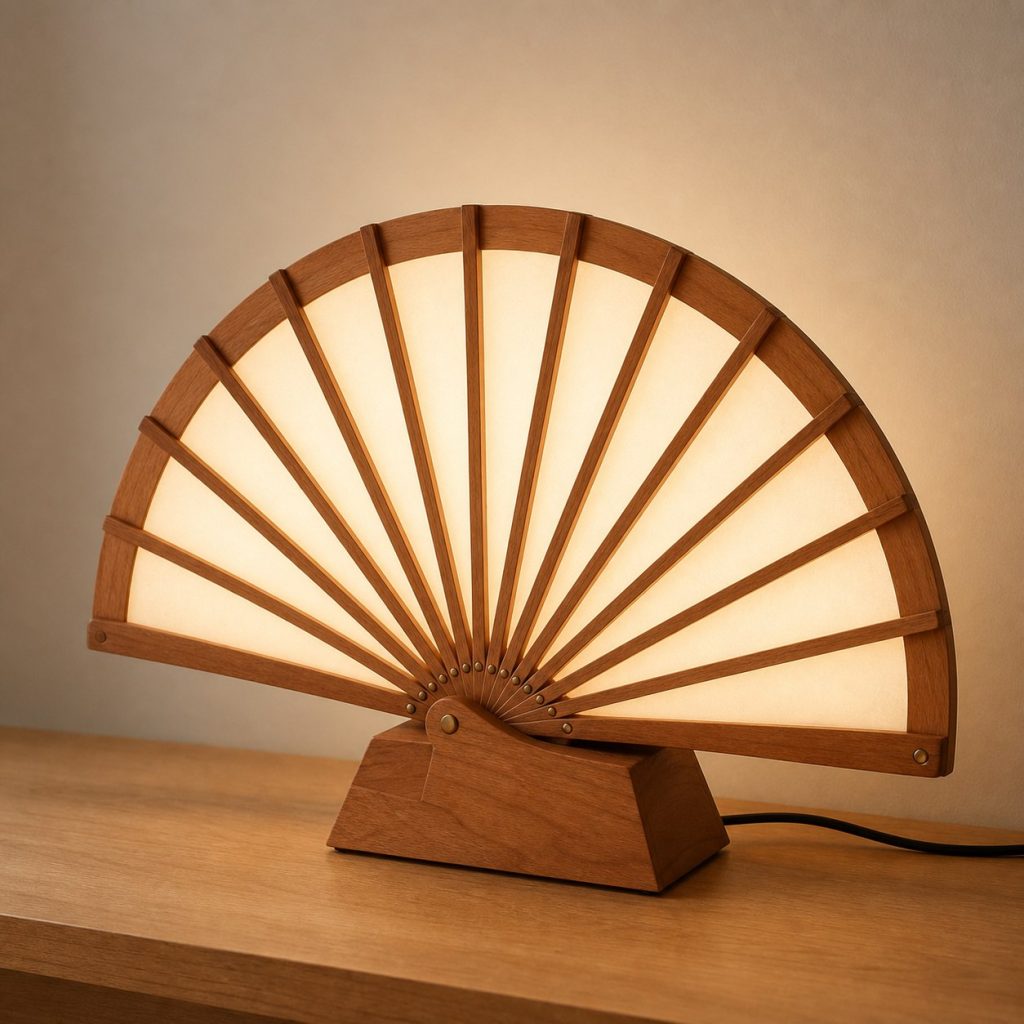

Cherry Fan Lamp
Moving parts have practical travel limits so they cannot crush the cable, loosen the mounting, or overbalance the lamp.
Design check: Draw full-size templates and verify grain direction, joint area, cable bores, and assembly order before cutting final stock.

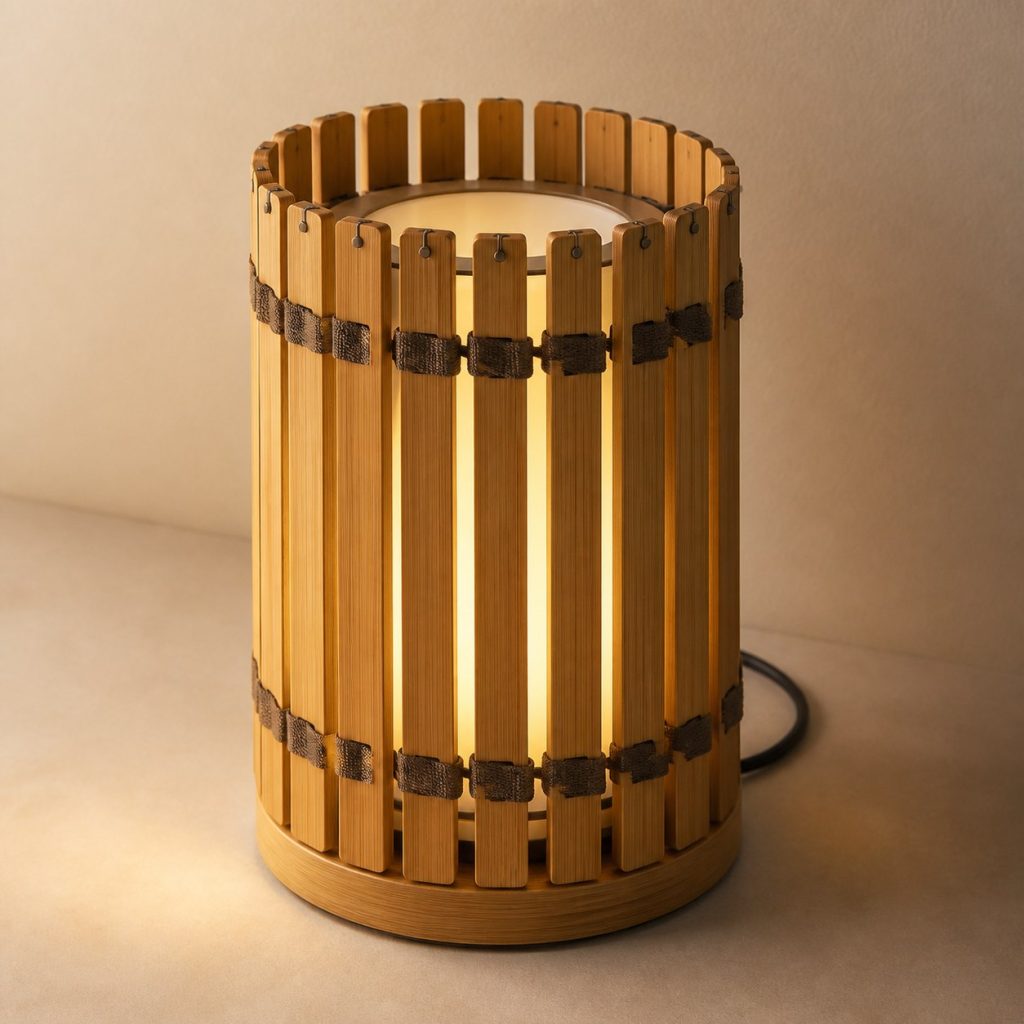

Bamboo Roll-Fold Lantern
Authentic wood grain, visible joinery, and restrained hardware make the construction sequence suitable for measured redrawing.
Design check: Test the least favorable load position, including an extended arm, offset shade, or suspended assembly.

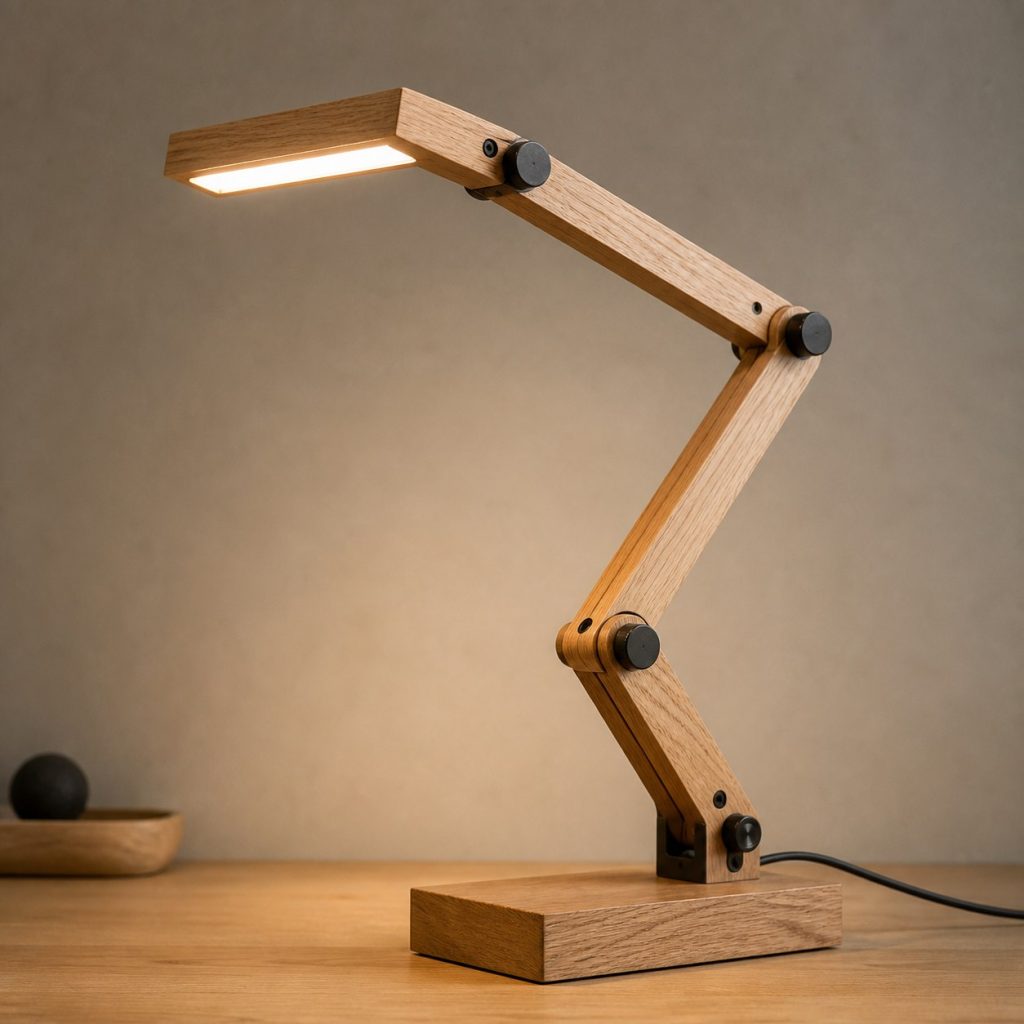

Oak Folding-Ruler Task Lamp
A protected cable channel and short dark cord keep the power path believable while separating wiring from abrasion and pinch points.
Design check: Finish test pieces first and allow the selected coating and adhesive to cure exactly as their labels require.

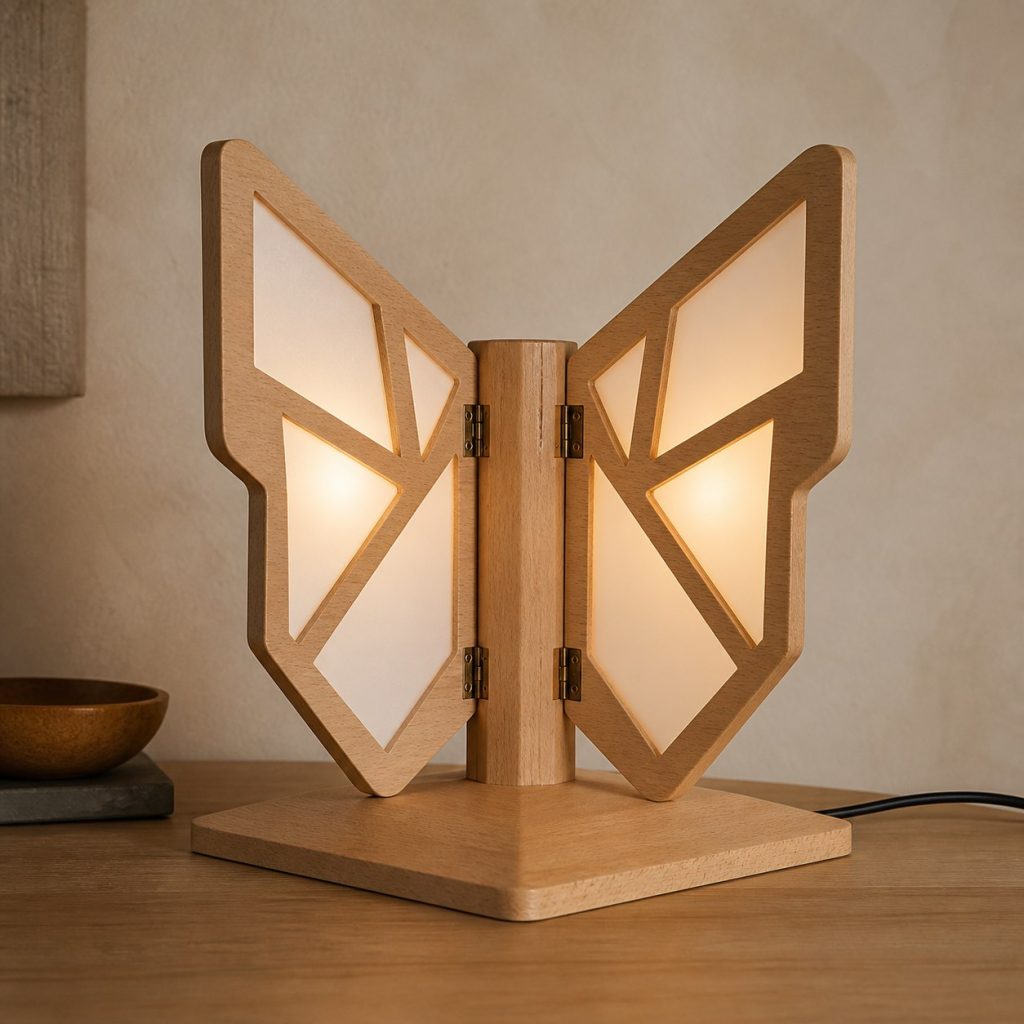

Beech Butterfly Panel Lamp
Low-heat diffused light is supported by a rated holder or metal channel with airflow and access to the driver or connection point.
Design check: Protect every cable opening from abrasion and provide strain relief plus service slack without loose loops near the lamp.

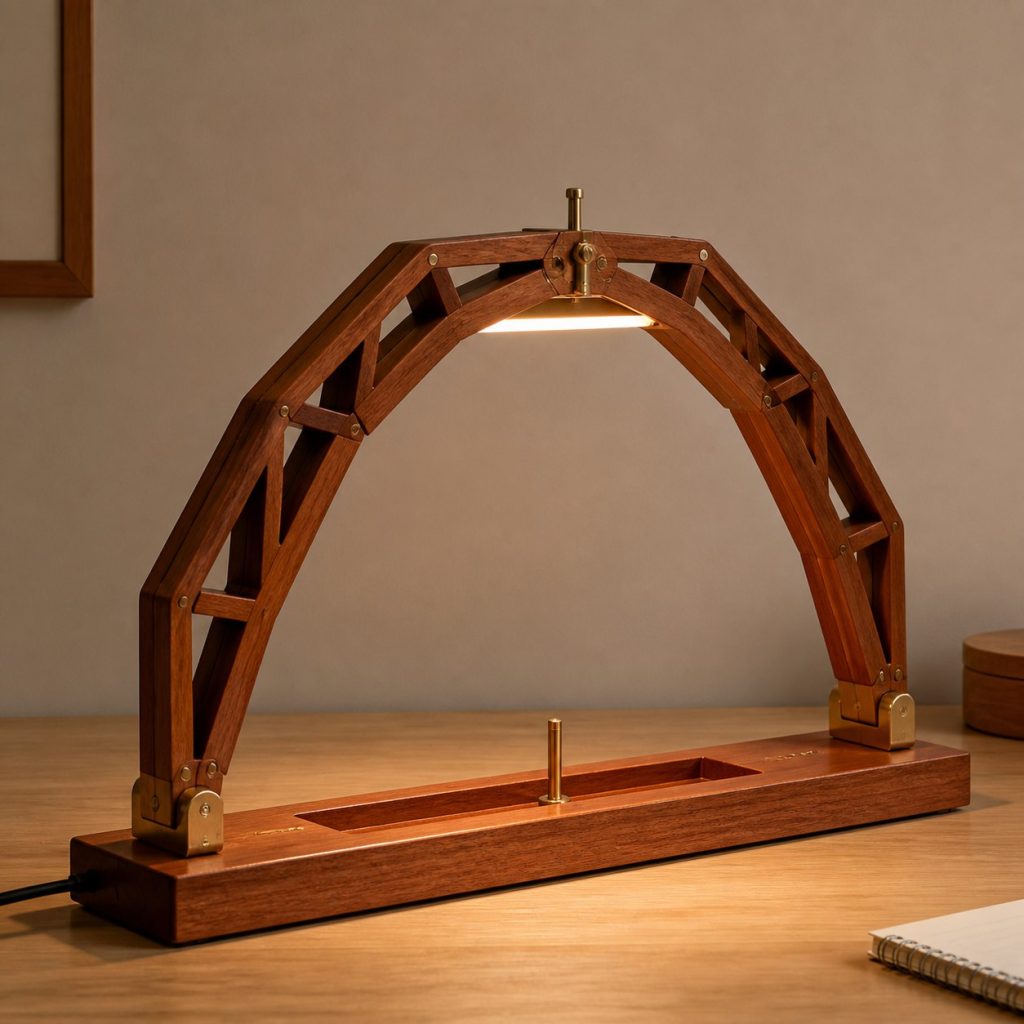

Sapele Folding-Bridge Lamp
Dry storage, books, modular parts, or suspended loads remain physically separated from the electrical compartment.
Design check: Evaluate the actual LED for lumen output, glare, color appearance, dimming behavior, and heat in the completed mock-up.

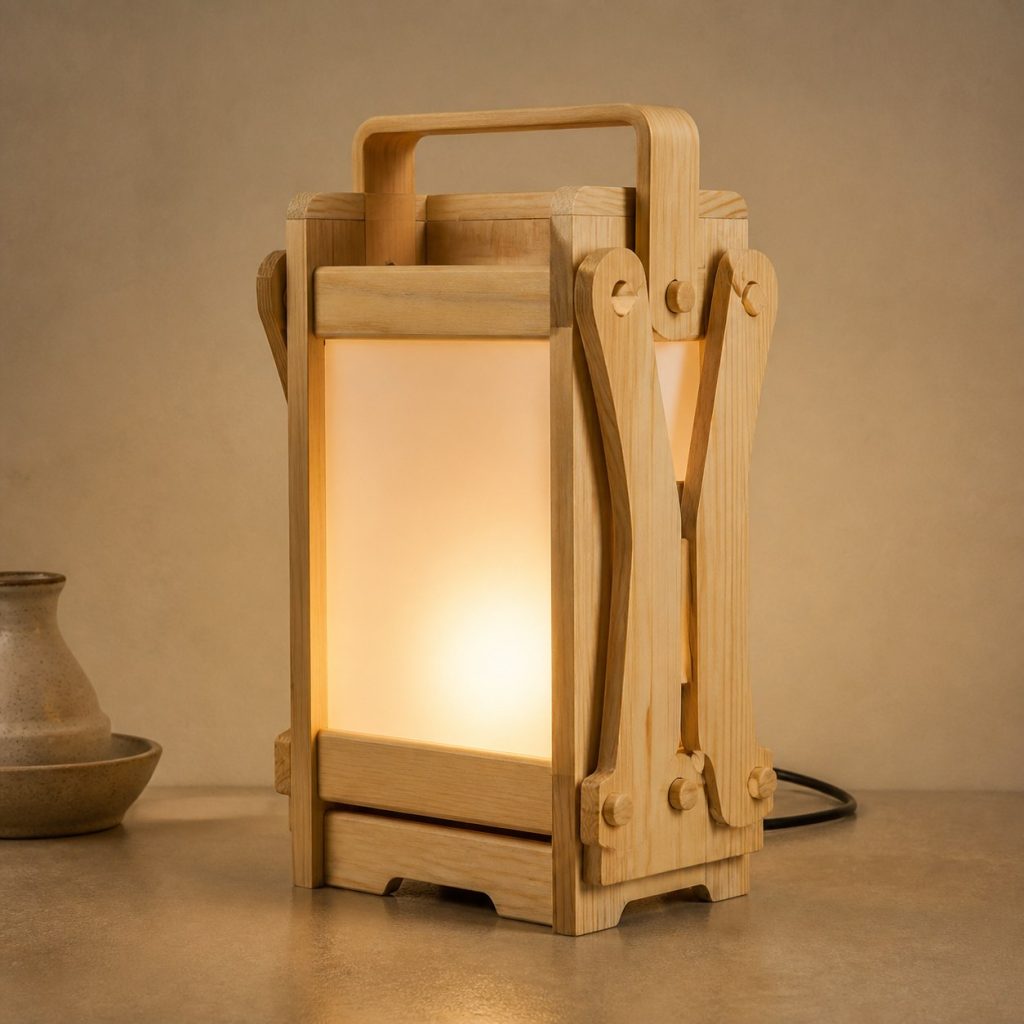

Pine Flat-Pack Lantern
Final checks cover stability, fasteners, stops, cord protection, mounting, heat, diffuser retention, and service clearance.
Design check: Complete a final inspection of fasteners, mounting, pivots, ventilation, cord condition, switch access, and stability.
Choose the light before shaping the wood
Start with the task and the actual light source. Lumens describe light output; correlated color temperature describes whether the light appears warmer or cooler, not whether one lamp is inherently better. Also compare glare, beam spread, color fidelity, dimming compatibility, and the ratings of every component in the system.
A low-power LED can reduce energy use and heat compared with an incandescent bulb, but it does not remove the need for ventilation, a suitable socket or driver, abrasion protection, strain relief, service access, and required clearances. Never exceed the marked rating of a fixture component.
Plan wood movement, joints, and finish
Bring the lumber near its expected indoor moisture condition before final milling. Orient grain through curved or narrow members, avoid placing critical fasteners beside checks, and allow wide solid-wood panels to move. Keep finish out of electrical contacts, cable paths, threaded lamp parts, and bonding surfaces, and let coatings cure fully before assembly.
Planning checklist
- Choose the rated LED, diffuser, holder or channel, driver, switch, dark cord, and strain relief before finalizing the mechanism.
- Draw the lamp at full size in its minimum, maximum, folded, loaded, and least stable positions.
- Mock up pivots, stops, clamps, hinges, rails, pulley paths, removable modules, and wall mounting before cutting finished stock.
- Keep grain continuous through arms and narrow parts, and reinforce every high-load hole or short-grain corner appropriately.
- Use bushings, washers, locknuts, threaded inserts, or replaceable wear surfaces where wooden parts move repeatedly.
- Route wiring away from pivot arcs, clamp screws, pulley ropes, sliding blocks, storage pockets, sharp edges, and hot components.
- Provide strain relief, abrasion protection, service slack, airflow, and tool access without leaving loose cable loops.
- Load-test the finished support, then test switching, insulation, surface temperature, diffuser retention, and every positive stop.
Frequently asked questions
Are these measured woodworking plans?
No. They are original design concepts for comparison. Redraw the selected mechanism around real stock, hardware, loads, rated lighting parts, and local requirements.
How should a moving lamp protect its cable?
Map the complete travel path, use suitable flexible cable and bushings, provide strain relief and controlled service slack, and keep wiring away from every pinch or abrasion point.
Can the electrical parts share a storage pocket?
Keep dry storage and moving objects separated from wiring, drivers, connectors, and hot components with a fixed barrier and independent service access.
What makes an adjustable wooden lamp stable?
Its base, clamp, backplate, fasteners, stops, counterweight, and load path must remain adequate in every permitted position, including the least favorable extension.
