Project planning guide
Before you build
Use the reference image and planning notes as a starting point. Confirm dimensions, loads, materials, local codes, and site conditions before purchasing or cutting.
- Type of Wood Joints
- 10 reference images
- Print-friendly guide
Miter joints meet on angled faces, commonly two 45-degree cuts forming a 90-degree corner. These ten examples focus on three visually verifiable approaches—plain, spline-reinforced, and keyed miters—across common frames, boxes, trays, and cabinet corners.
Quick answer: This guide shows ten separate, labeled examples related to miter joint. Study the mating faces, shoulders, grooves, fasteners, and direction of assembly before choosing a joint for a real project.
10 examples in this guide
- Plain Miter Picture Frame
- Plain Miter Box Corner
- Glued Miter Trim Corner
- Spline Miter Box Corner
- Spline Miter Picture Frame
- Spline Miter Tray Corner
- Keyed Miter Box Corner
- Keyed Miter Picture Frame
- Keyed Miter Tray Corner
- Keyed Miter Cabinet Corner

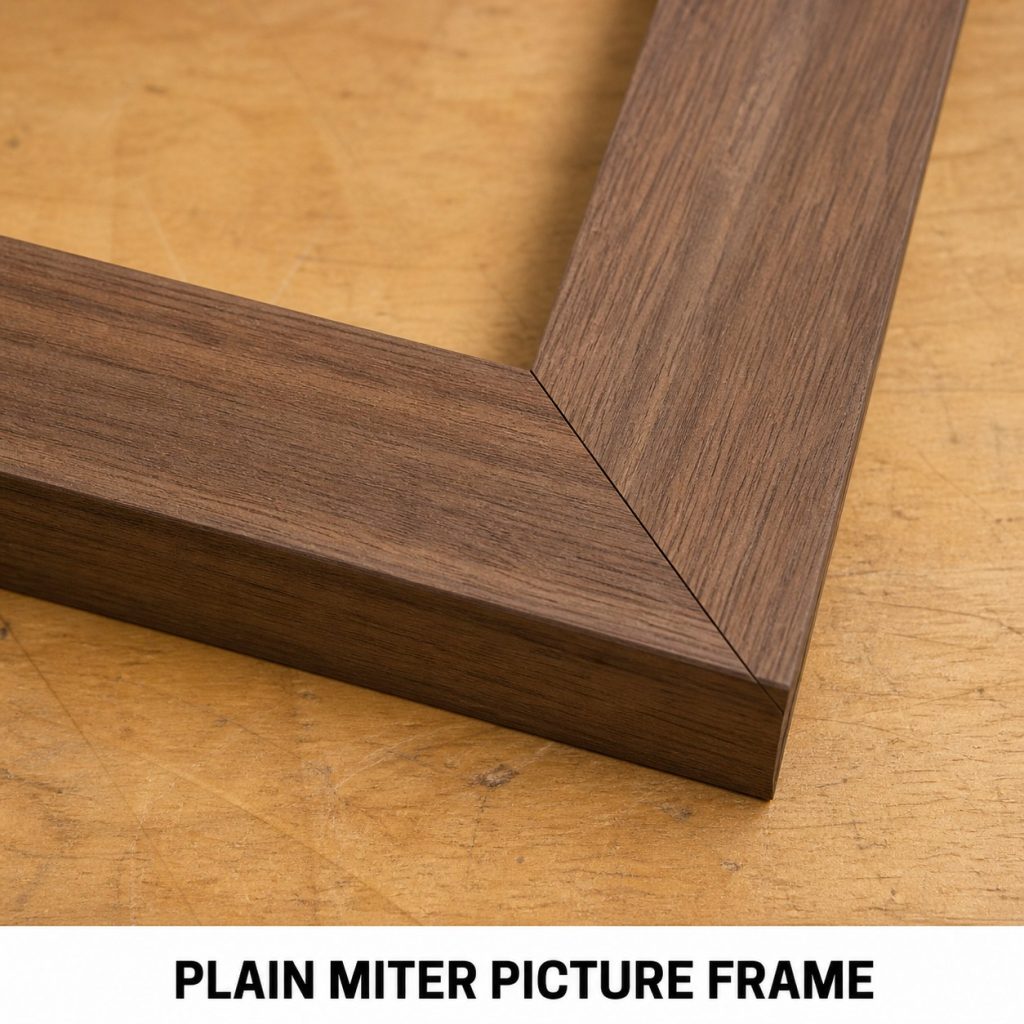

1. Plain Miter Picture Frame
What to notice: Matching 45-degree faces make a clean picture-frame corner.
Typical uses: picture and mirror frames.
Dry-fit check: Confirm that mating parts are complementary, shoulders close evenly, and the parts assemble in the intended direction without forcing.

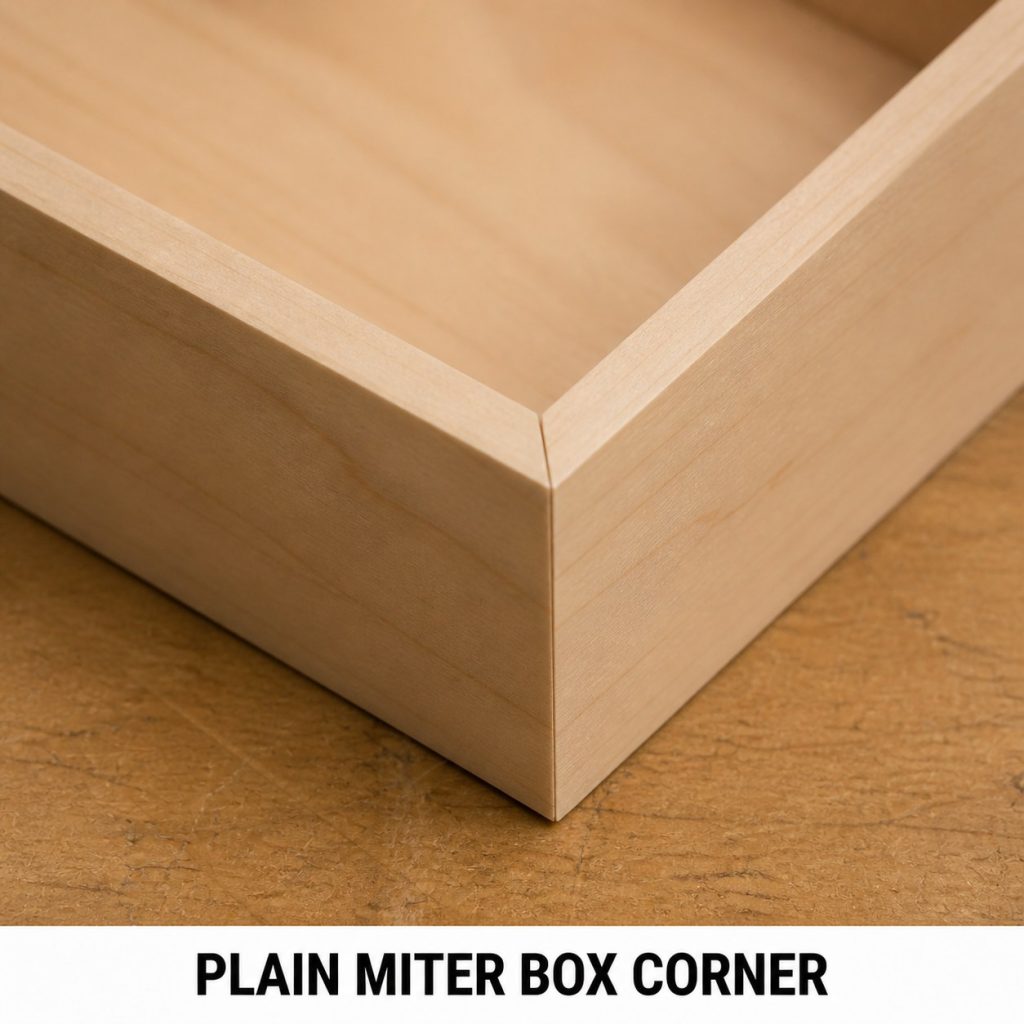

2. Plain Miter Box Corner
What to notice: A plain box miter hides both boards' end grain from the outside.
Typical uses: light boxes and cases.
Dry-fit check: Confirm that mating parts are complementary, shoulders close evenly, and the parts assemble in the intended direction without forcing.

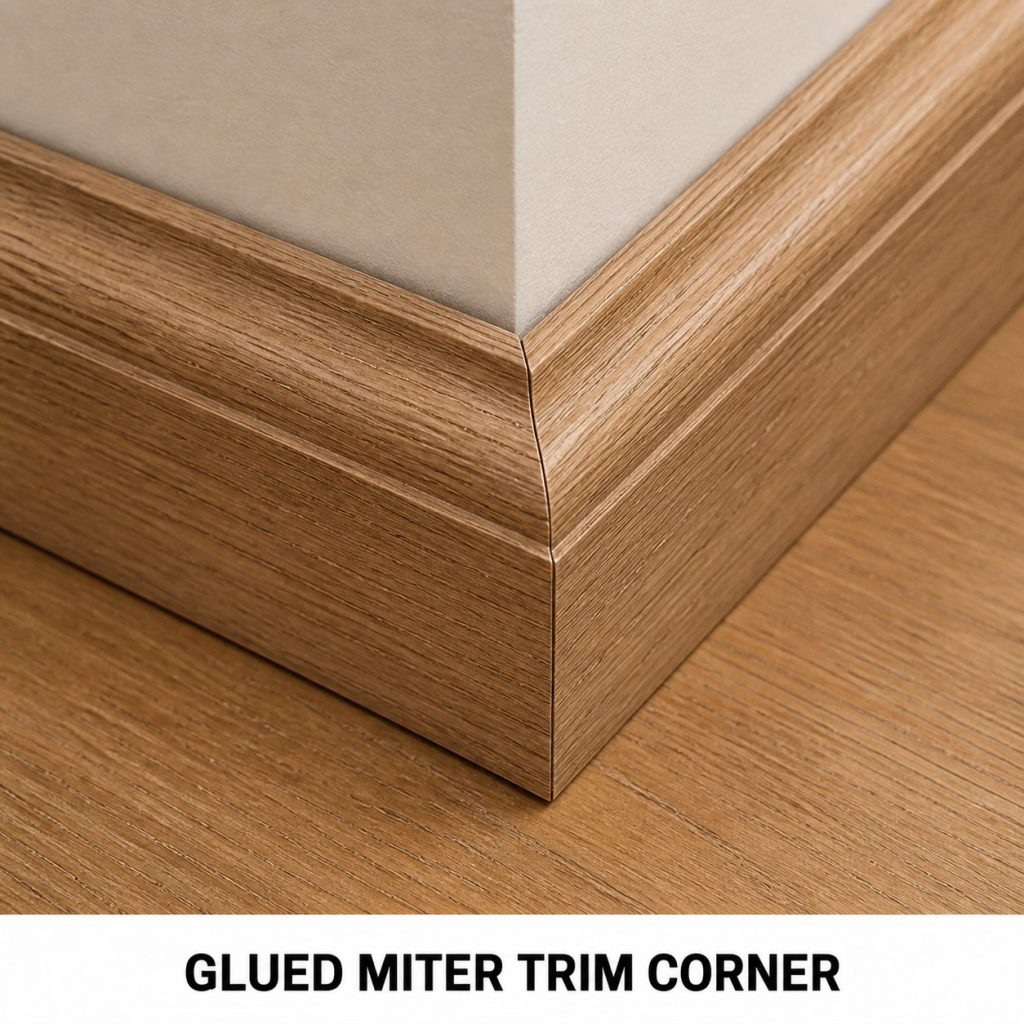

3. Glued Miter Trim Corner
What to notice: Accurate cuts and clamping are essential when glue alone carries the corner.
Typical uses: trim and moldings.
Dry-fit check: Confirm that mating parts are complementary, shoulders close evenly, and the parts assemble in the intended direction without forcing.

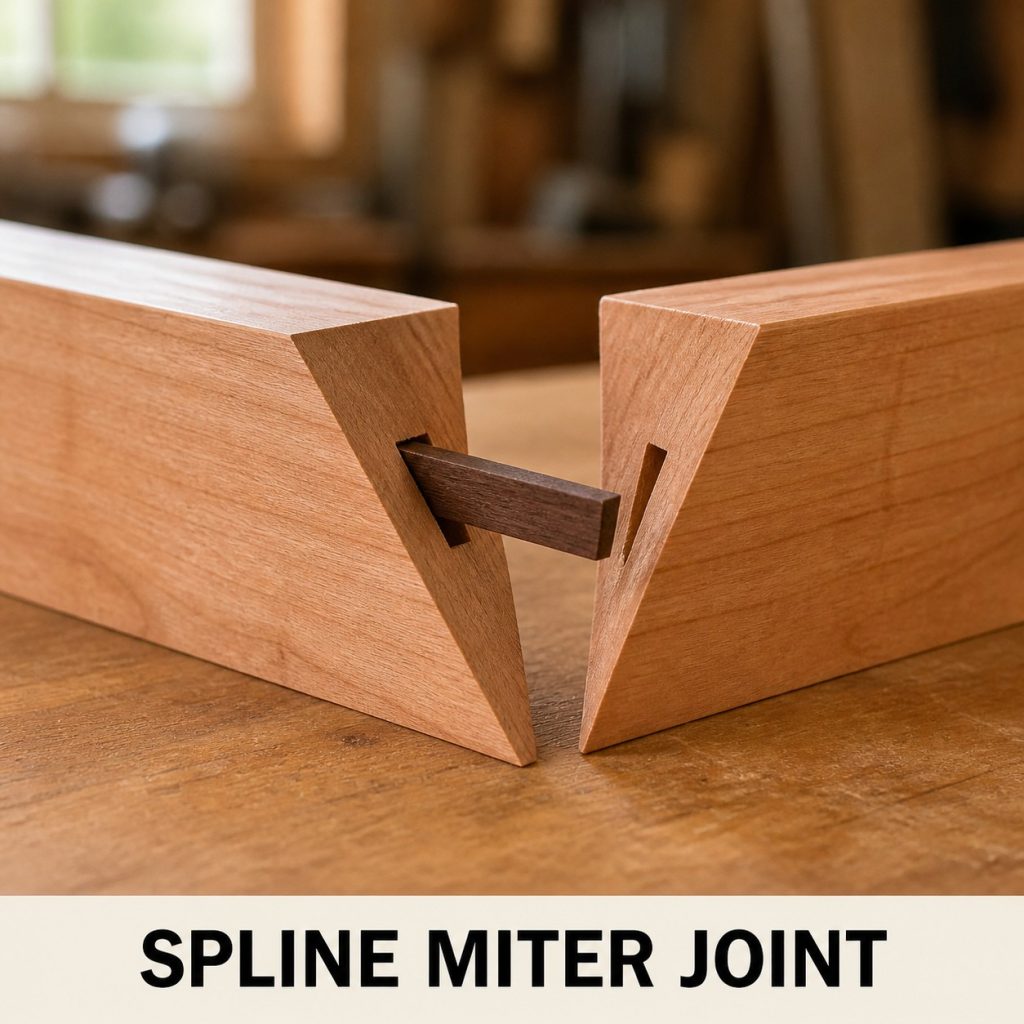

4. Spline Miter Box Corner
What to notice: A spline adds alignment and long-grain gluing surface.
Typical uses: boxes and cases.
Dry-fit check: Confirm that mating parts are complementary, shoulders close evenly, and the parts assemble in the intended direction without forcing.

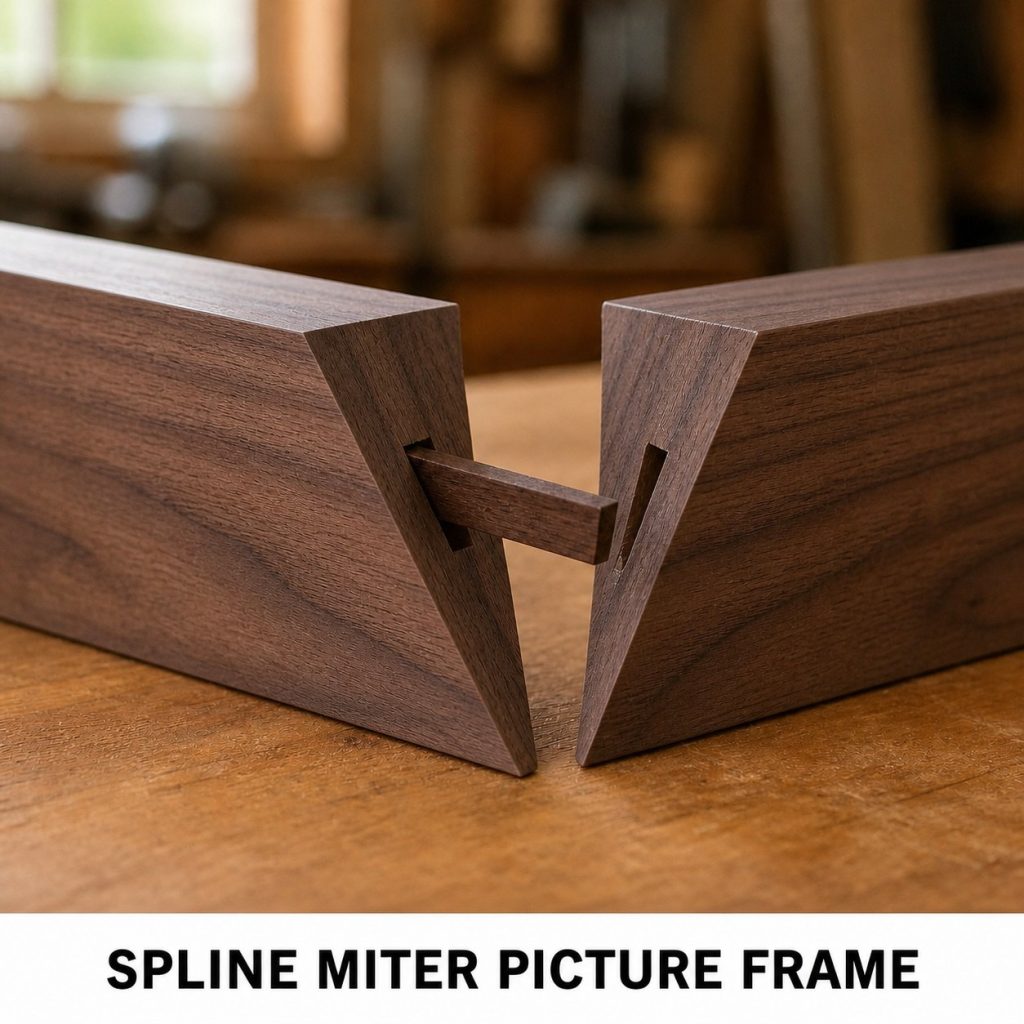

5. Spline Miter Picture Frame
What to notice: A concealed spline reinforces a narrow frame without changing its outer line.
Typical uses: picture and mirror frames.
Dry-fit check: Confirm that mating parts are complementary, shoulders close evenly, and the parts assemble in the intended direction without forcing.

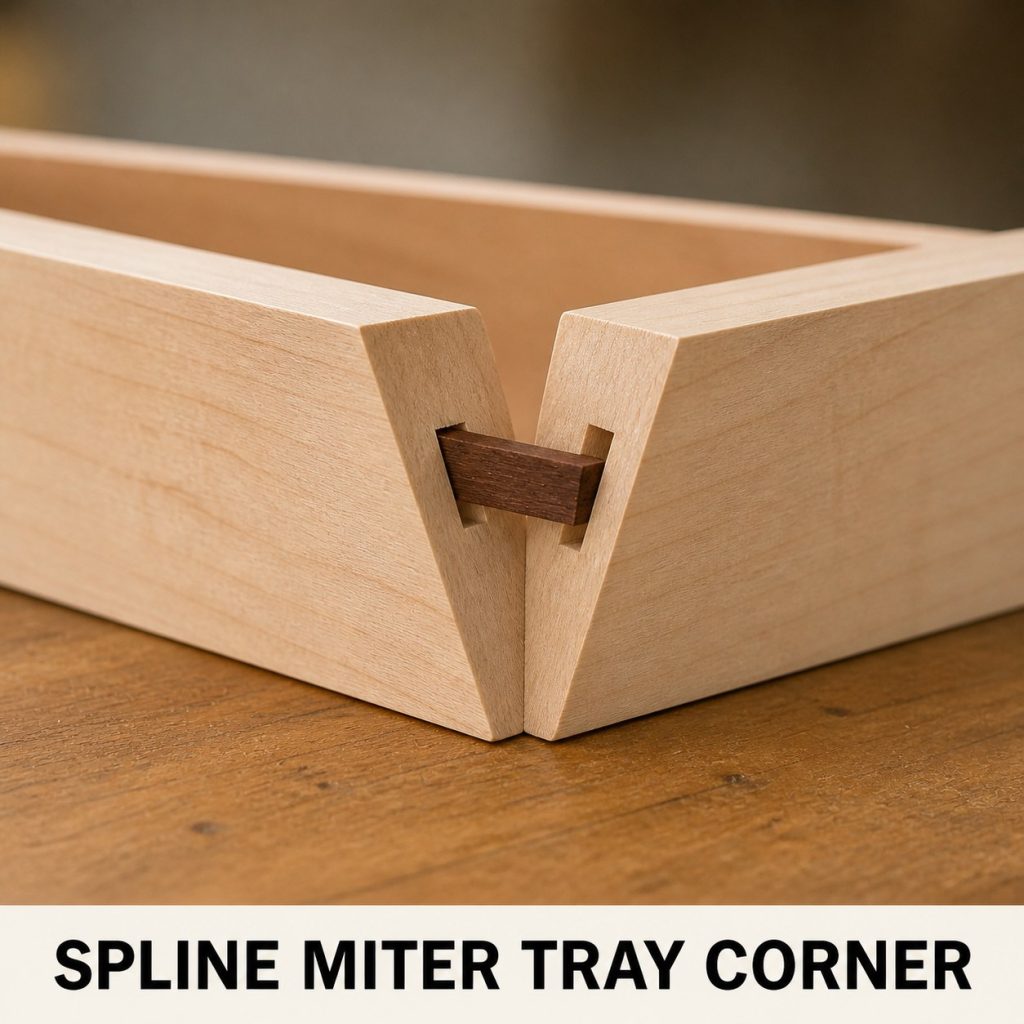

6. Spline Miter Tray Corner
What to notice: A spline can reinforce and decorate a tray corner at the same time.
Typical uses: trays and shallow boxes.
Dry-fit check: Confirm that mating parts are complementary, shoulders close evenly, and the parts assemble in the intended direction without forcing.

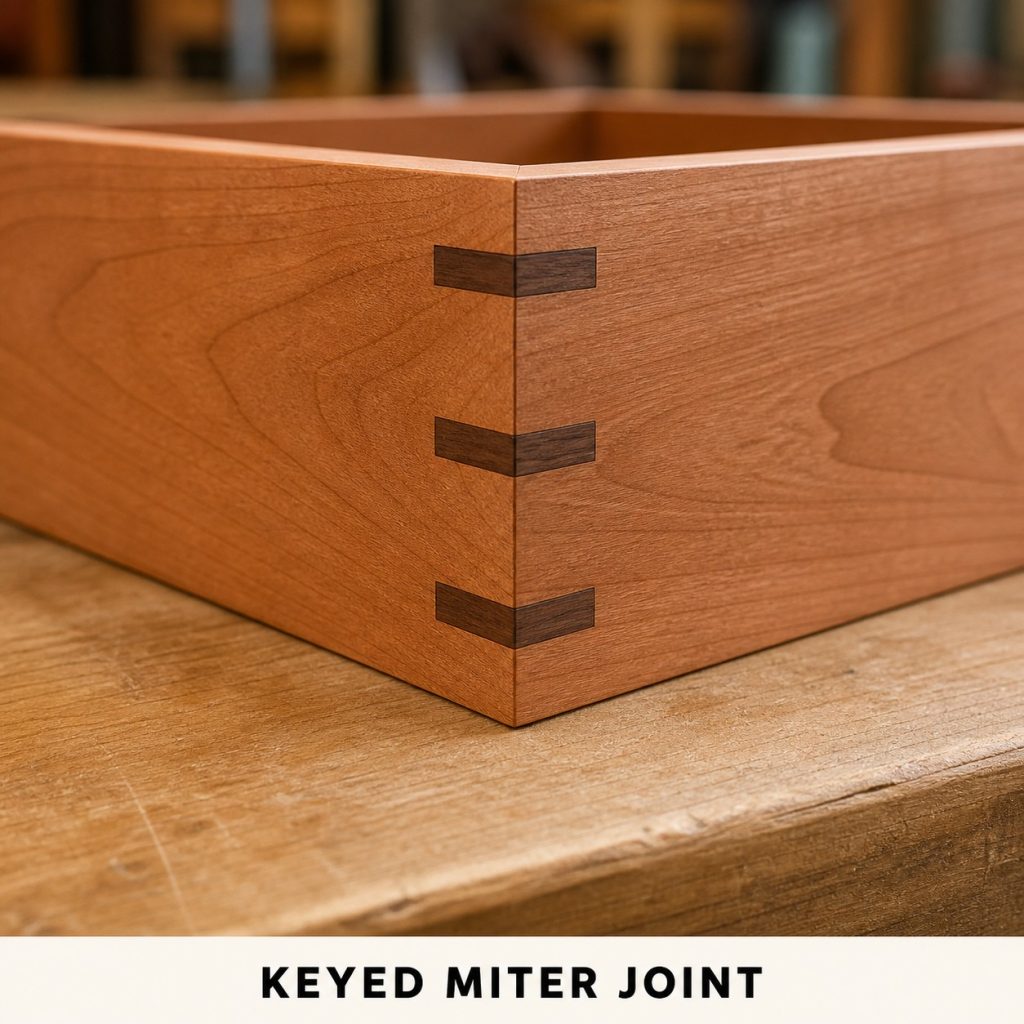

7. Keyed Miter Box Corner
What to notice: External keys bridge the miter and create a visible accent.
Typical uses: decorative boxes.
Dry-fit check: Confirm that mating parts are complementary, shoulders close evenly, and the parts assemble in the intended direction without forcing.

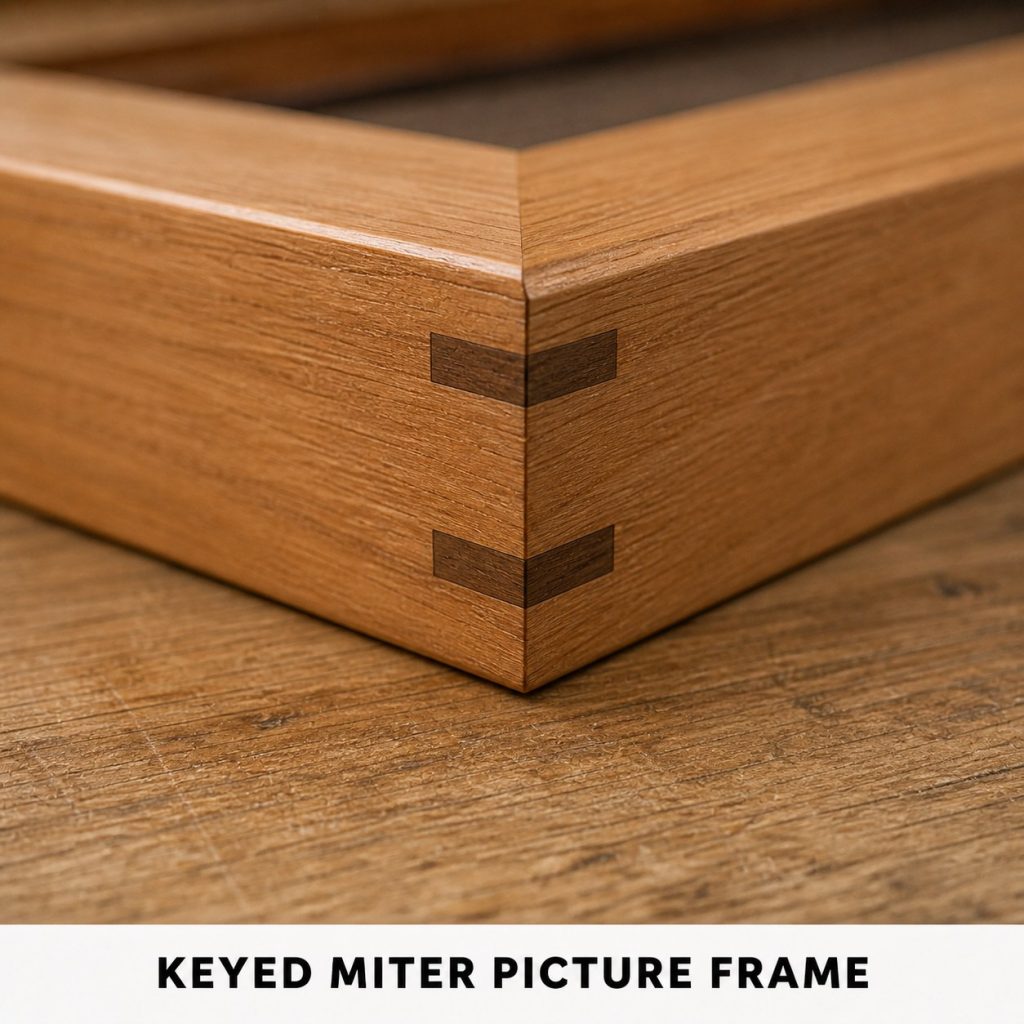

8. Keyed Miter Picture Frame
What to notice: Keys add mechanical resistance where wide frame miters tend to open.
Typical uses: wide picture and mirror frames.
Dry-fit check: Confirm that mating parts are complementary, shoulders close evenly, and the parts assemble in the intended direction without forcing.

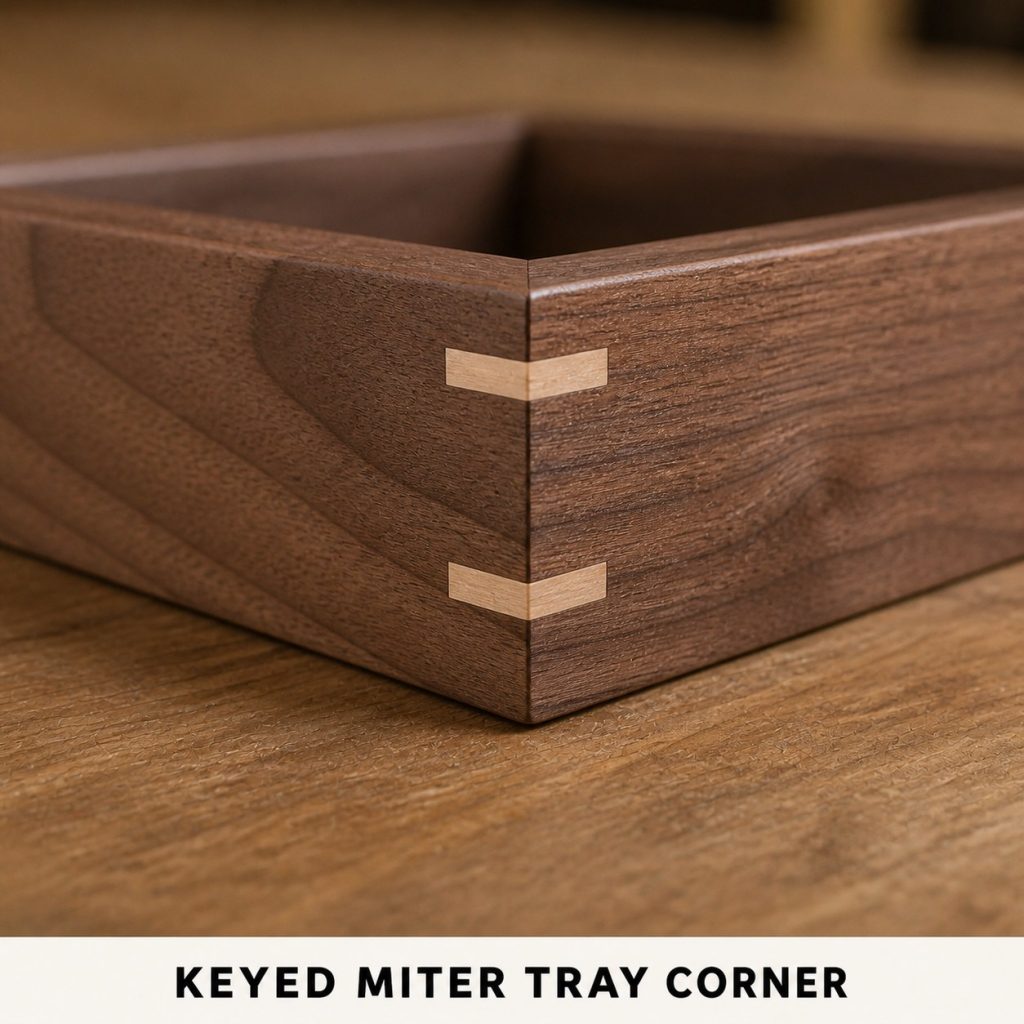

9. Keyed Miter Tray Corner
What to notice: Flush keys strengthen a shallow mitered corner without internal hardware.
Typical uses: serving trays and organizers.
Dry-fit check: Confirm that mating parts are complementary, shoulders close evenly, and the parts assemble in the intended direction without forcing.

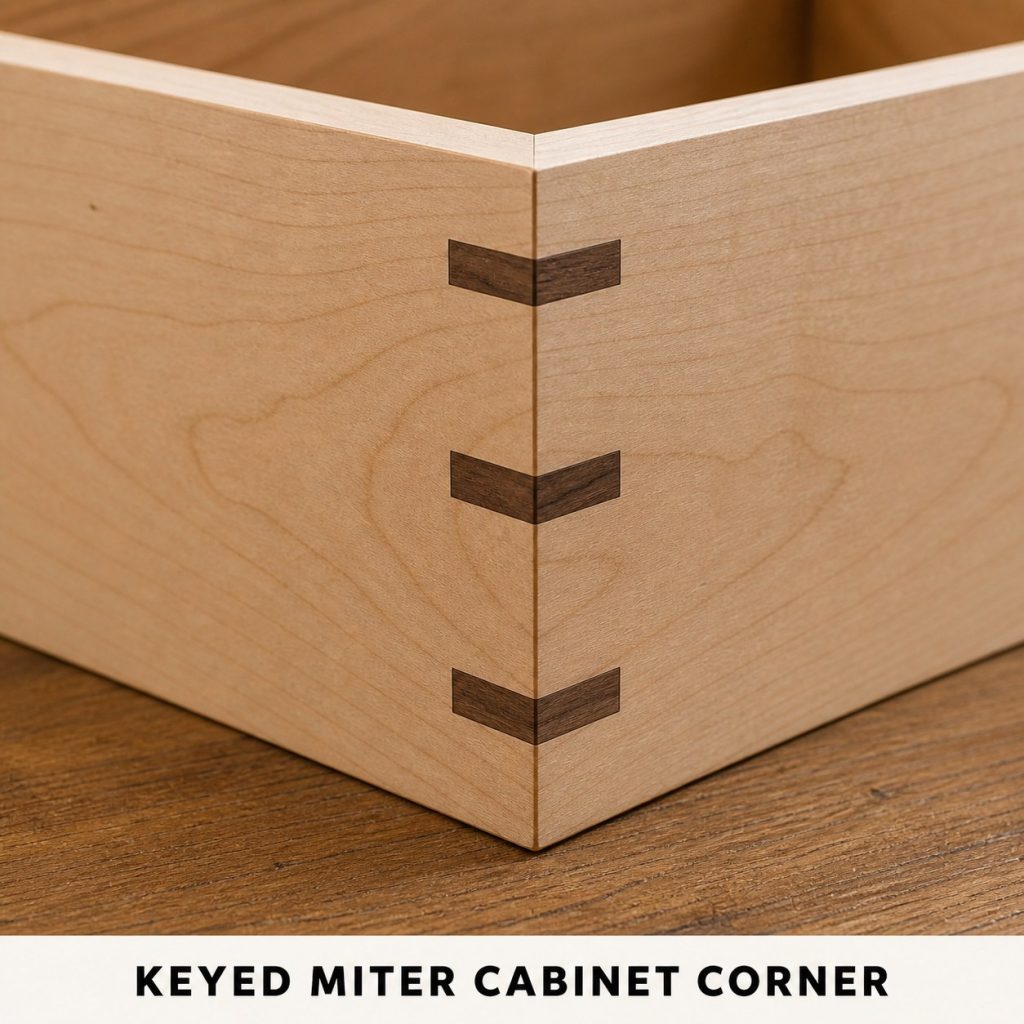

10. Keyed Miter Cabinet Corner
What to notice: Multiple keys spread reinforcement along a wide case corner.
Typical uses: small cabinets and display cases.
Dry-fit check: Confirm that mating parts are complementary, shoulders close evenly, and the parts assemble in the intended direction without forcing.
Before you cut the joint
- Mark a reference face and edge on every workpiece.
- Make a full-size sample from scrap of the same species and thickness.
- Dry-fit before glue and inspect cheeks, shoulders, end grain, and movement clearance.
- Use guards, hold-downs, eye protection, dust control, and the tool manufacturer’s instructions.
- Use engineered drawings for load-bearing timber, roof, stair, deck, or structural connections.
Frequently asked questions
Can I copy dimensions from these photos?
No. The images explain orientation and connection type only. Size the joint from the real stock, load, species, and verified plan.
Why make a test joint?
A scrap test reveals cutter width, setup error, grain behavior, and fit before the final component is damaged.
Should a dry joint need heavy force?
No. It should close with controlled hand pressure or light tapping appropriate to the design. Excessive force can split cheeks, pins, tails, or shoulders.
