A wooden hose reel box can visually organize a watering area while keeping the reel accessible. This woodworking project must avoid enclosing leaks, pinching the hose, blocking backflow devices, or hiding fasteners and plumbing that need inspection.

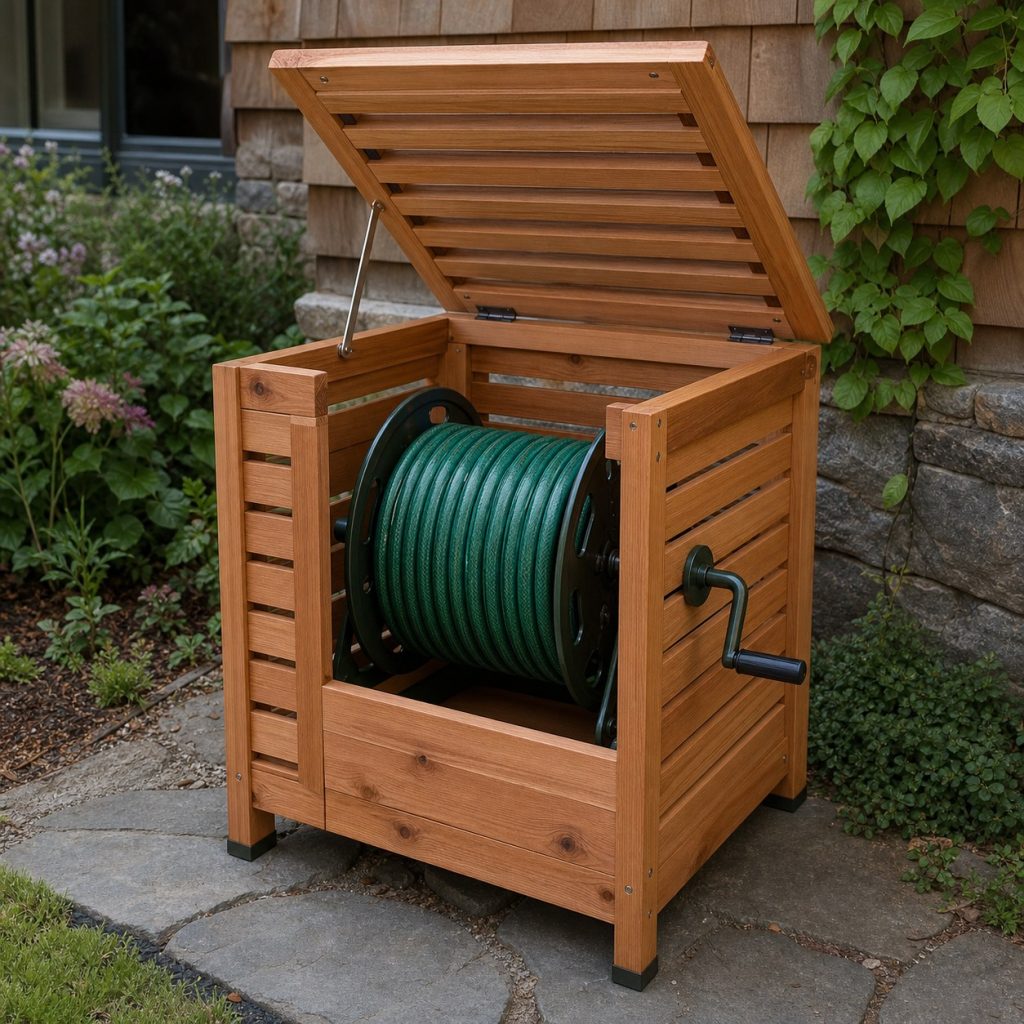

Top-Opening Reel Box
A top opening provides service access when the lid has safe support and does not strike the wall or faucet. Follow the reel, hose, faucet, and backflow-device instructions; keep plumbing serviceable, protect potable water as locally required, and use a plumber where modifications or freeze protection are needed.

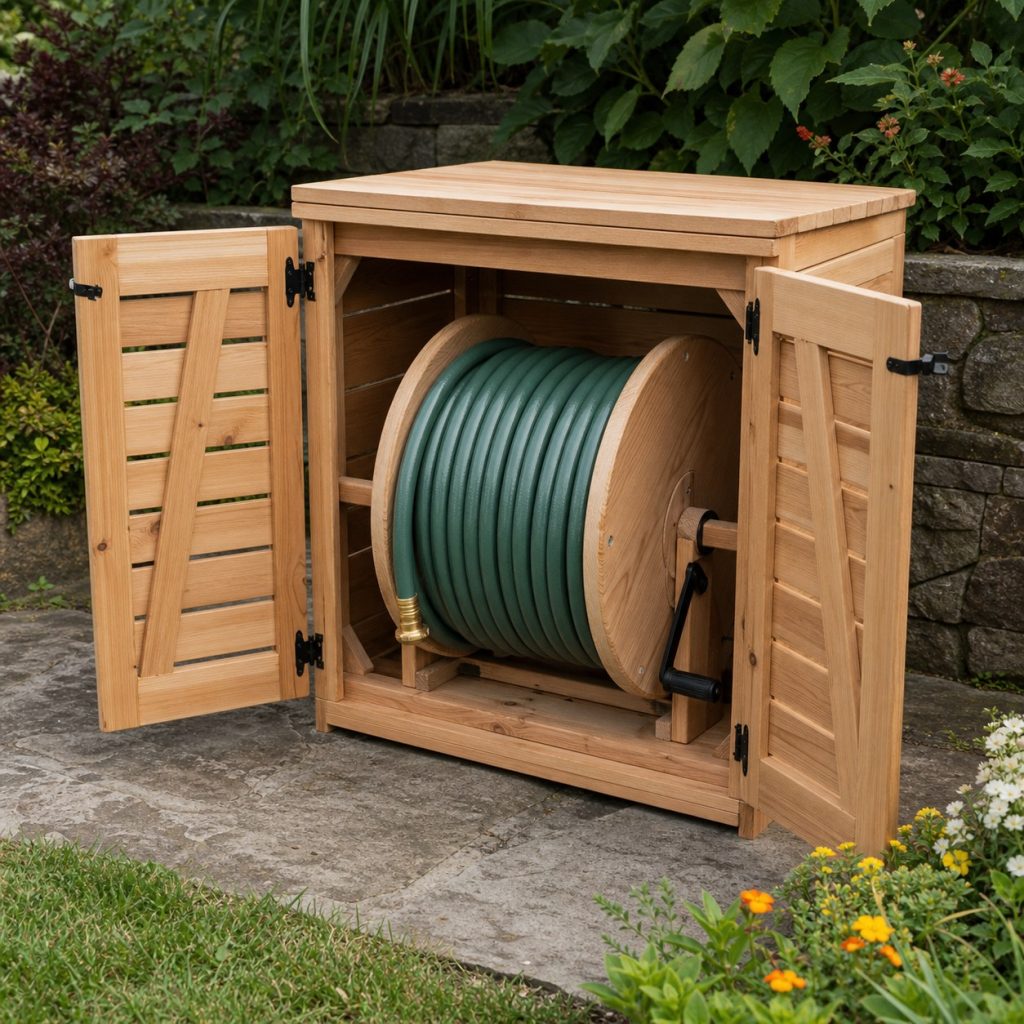

Front-Door Hose Cabinet
Wide doors expose the crank and connections while magnetic or mechanical catches keep them secure in wind.

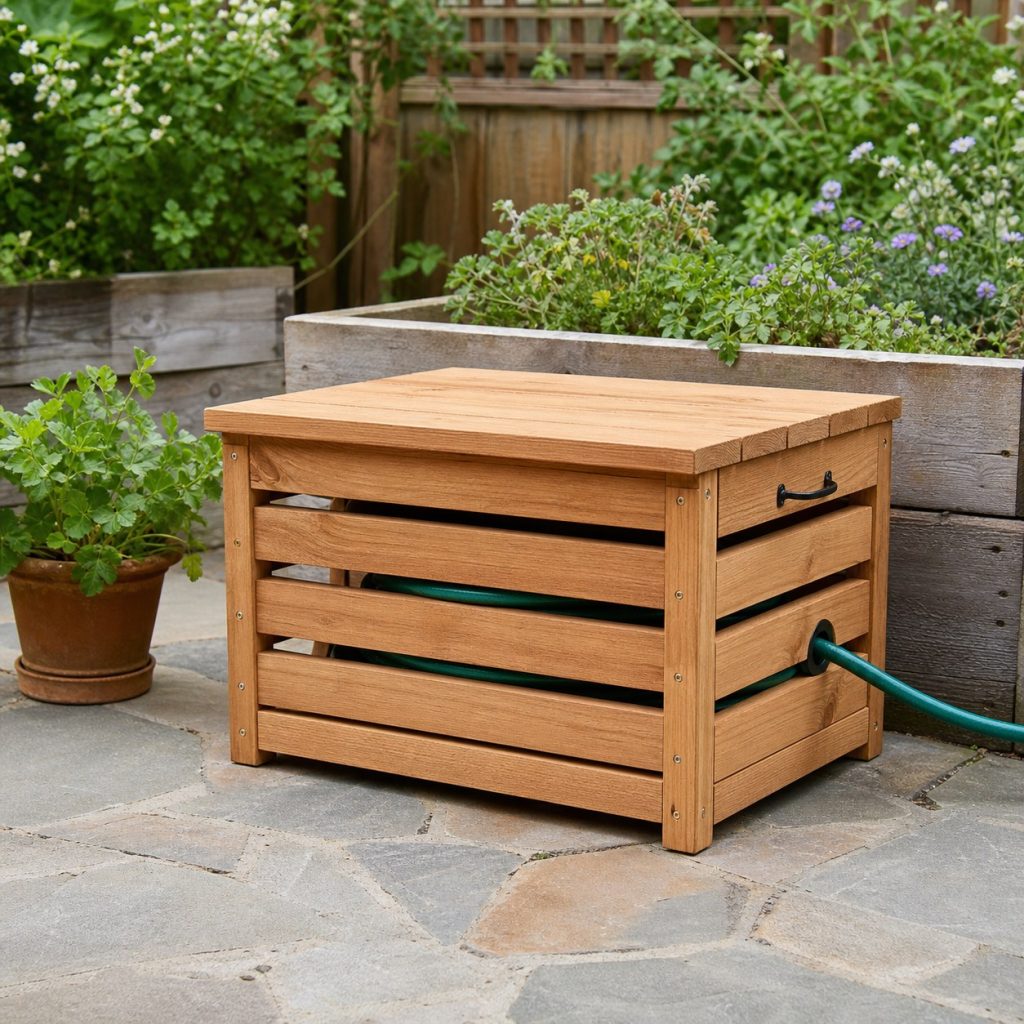

Bench-Top Reel Box
A usable top requires a rigid frame and must not invite seating unless the structure is specifically load-rated for it.

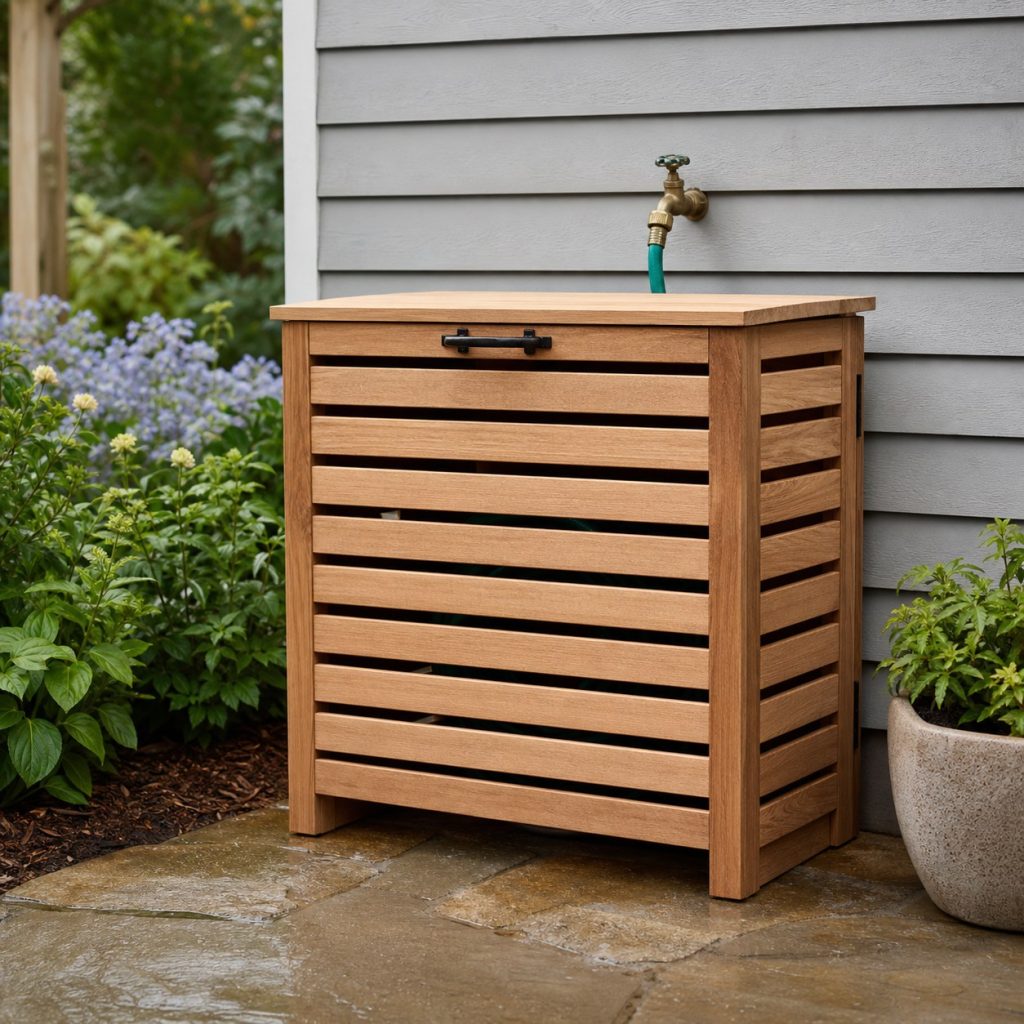

Wall-Backed Reel Enclosure
A removable back opening preserves faucet access without fastening the wet enclosure directly over plumbing joints.

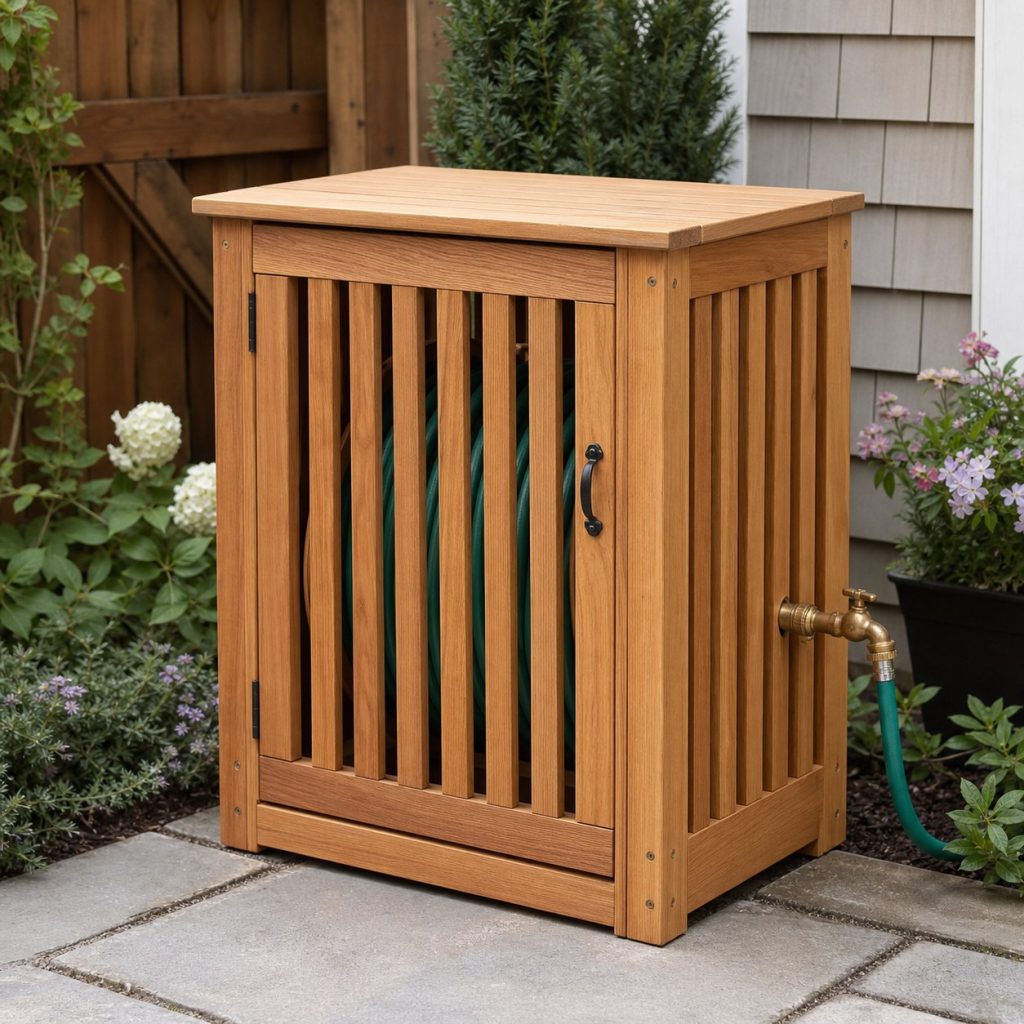

Compact Side-Yard Box
A compact shell must still allow the full crank sweep, hose bend radius, drainage, and hand clearance.

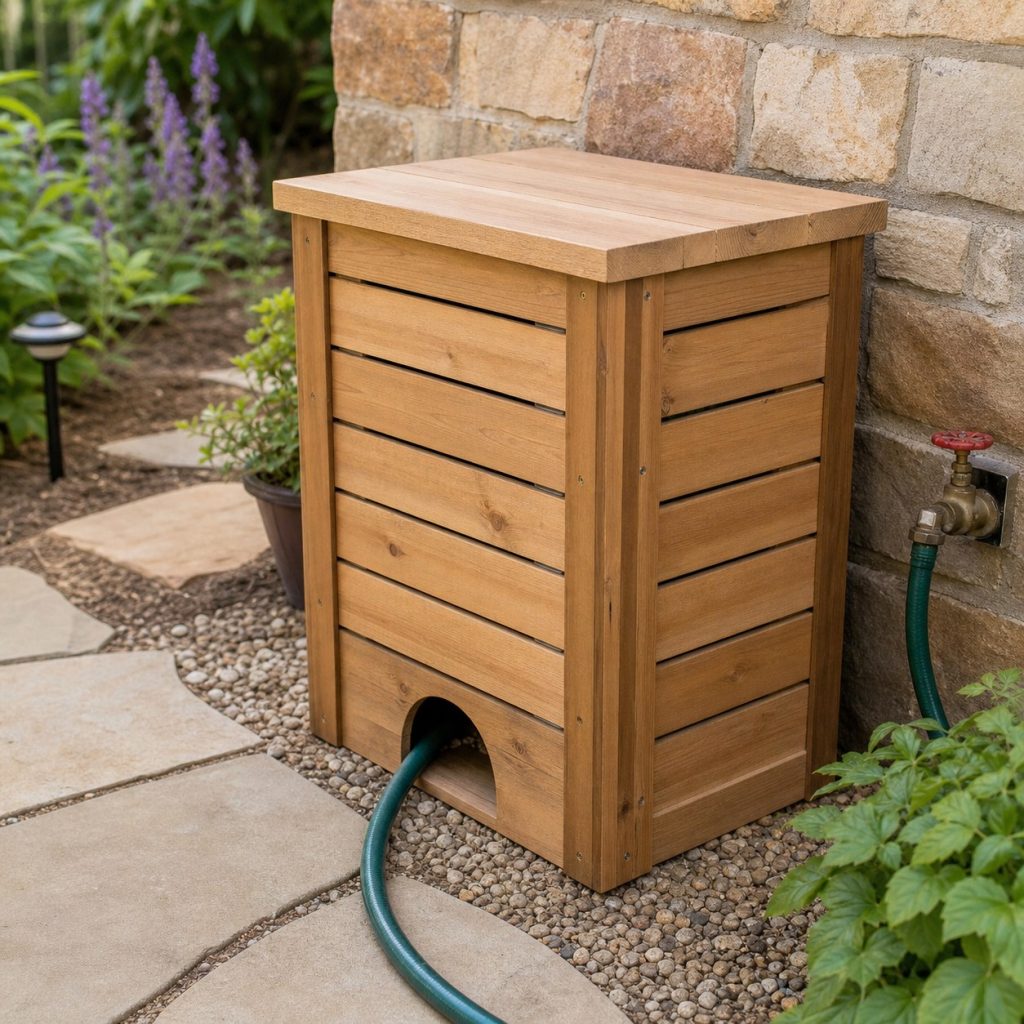

Pull-Through Hose Slot Box
A smooth oversized outlet reduces abrasion and should guide the hose without creating a sharp-edged trip point.

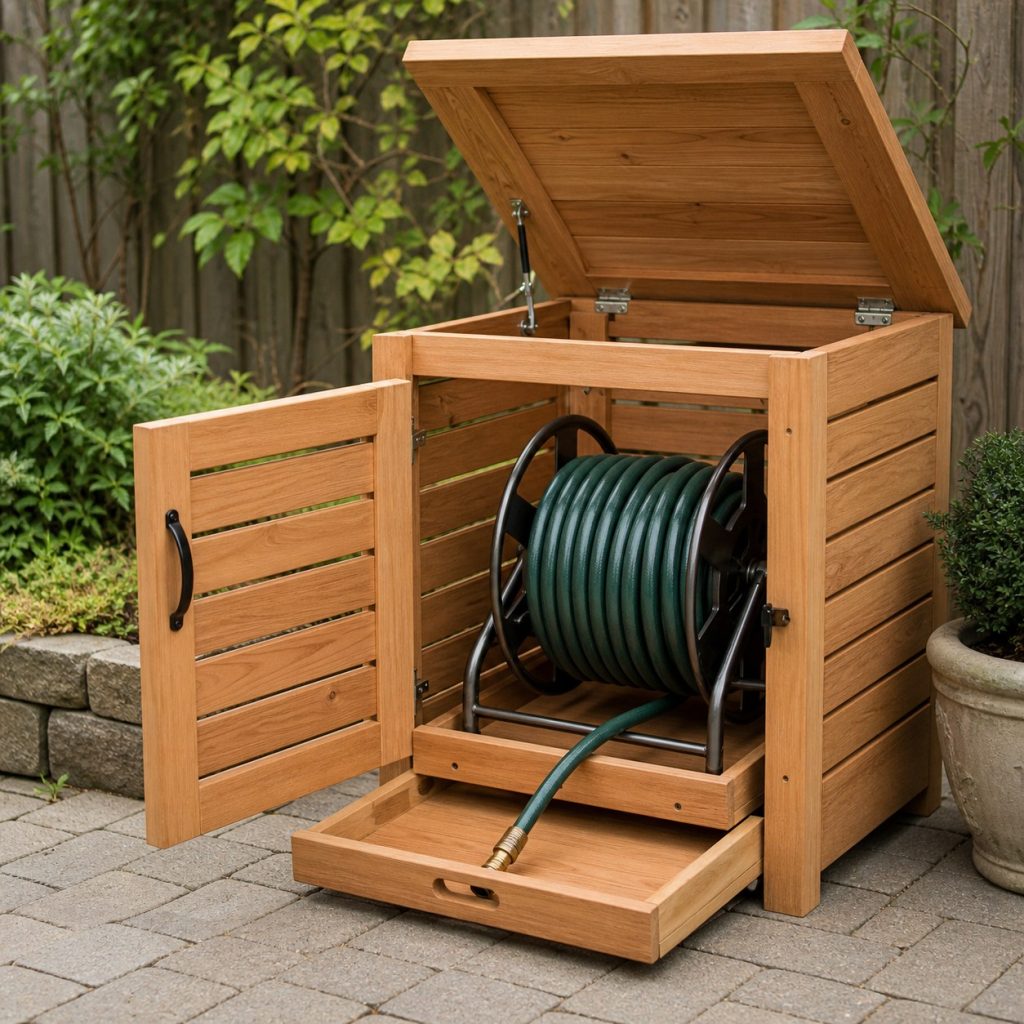

Lift-Out Reel Tray
A lift-out or slide-out mounting tray simplifies maintenance if handles, weight, and connection slack are safely managed.

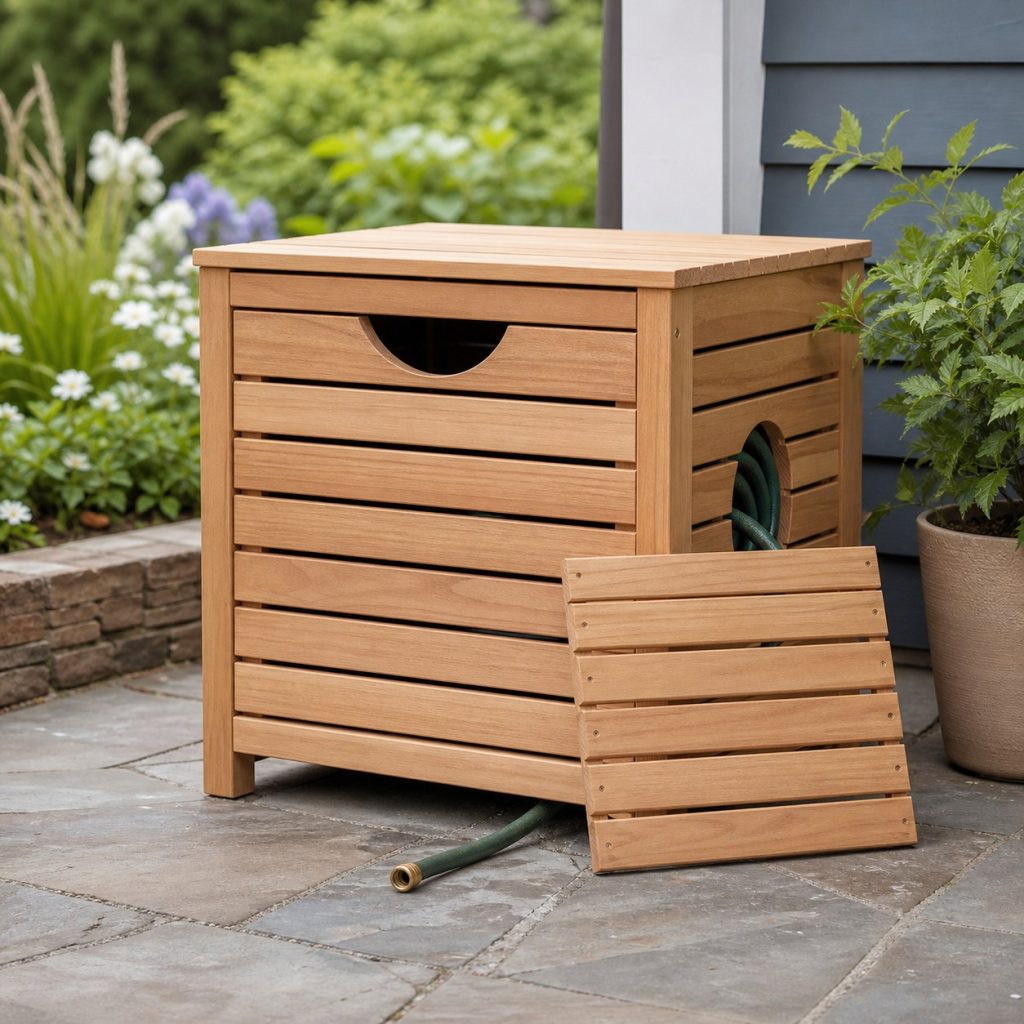

Ventilation and Service Details
Raised feet, slat gaps, and removable panels help the enclosure dry and keep every connection visible for inspection.
Planning checklist
- Measure reel rotation, crank sweep, hose path, and connections.
- Mount the reel to a reinforced independent panel or tray.
- Provide ventilation, drainage, and clearance above soil.
- Use smooth hose openings and secure lids or doors.
- Keep faucets, backflow devices, and shutoffs serviceable.
These woodworking concepts and generated images are planning inspiration, not measured drawings, cut lists, tested furniture plans, load ratings, engineered structures, accessibility designs, playground certifications, or utility instructions. Verify dimensions, ergonomics, lumber grade and treatment, grain direction, joint design, fastener and preservative compatibility, structural and wind loads, stability, sharp and pinch hazards, finish labels, equipment instructions, accessibility, permits, and local requirements for the actual project. Use appropriate personal protective equipment and qualified engineers, electricians, plumbers, accessibility specialists, and other licensed professionals where the work or hazards require them.
Frequently asked questions
Can I completely seal a hose reel box?
No. Leaks and condensation need visible drainage and ventilation, and the reel and plumbing must remain accessible.
Should the reel mount to the enclosure wall?
Only if that wall and its fasteners are reinforced for the reel's operating loads. An independent mounting panel or tray can simplify design.
Can the box stay connected during freezing weather?
Follow local plumbing guidance and product instructions for disconnection, draining, shutoff, and freeze protection.
